Build the widget of your dreams. Silex ♥ Yahoo!

Posted by
|

How to make a Yahoo! widget out of a Silex publication ? It is quite simple since Silex has a widget mechanism. It was made to allow you to put a publication on a myspace page, to create an application out of a publication with Zinc…

Let’s use this functionality of Silex and the Yahoo! widgets system, in order to make a desktop application with installation, update and configuration.

Here is my sample widget. And here are the sources.

widget test for Silex

widget test for Silex: it gives you some news about Silex on your desktop

Yahoo! Widgets is a free application platform for Mac OS X and Microsoft Windows.

  • http://en.wikipedia.org/wiki/Yahoo!_Widgets
  • http://widgets.yahoo.com/

Here is how to make a Yahoo! widget with Silex:

  • in a silex server, create one site with the parameter « layer skin » set to « layer_skin_light.swf » and no embed fonts (all text field should have the parameter « include font » unchecked). You can remove the folders fonts, logs, cgi, conf, install, js, loaders, plugins, tools, trash and all files in the root folder except silex.swf
  • in a new folder where you will put all the yahoo plugin, put a « Resources » folder with the « silex_server » folder inside it.
  • use the file « fla/loader_projector.fla » of the dev kit to generate the loader, which I called « loader_yahoo_widget.swf ». This file contains the website configuration, your site name for example. Tip : leave this line uncommented (i do not know why exactly):
rootUrl = "../silex_server/";
  • create a .kon file which is the yahoo widget conf file, see the example I did. You just need to embed the loader_yahoo_widget.swf file. You also can define properties which the user will be able to modify and which will be available in Silex as accessors (in <<silex.config.YOUR PROPERTY FROM YAHOO CONFIG PANNEL>>)

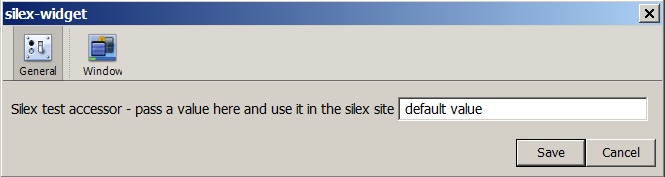

silex yahoo widget admin pannel

silex yahoo widget admin pannel

  • install yahoo widget and use the « open widget » menu in order to load your widget.

After you have done a cool widget, do not forget to submit it to yahoo! here.

Note: the widget background is transparent, which is pretty cool 🙂

How to make a Yahoo! widget out of a Silex publication ? It is quite simple since Silex has a widget mechanism. It was made to allow you to put a publication on a myspace page, to create an application out of a publication with Zinc…
http://en.wikipedia.org/wiki/File:Konfabulator_screenshot.jpg
Yahoo! Widgets is a free application platform for Mac OS X and Microsoft Windows.
> http://en.wikipedia.org/wiki/Yahoo!_Widgets
> http://widgets.yahoo.com/
– in a silex server, create one site with the parameter « layer skin » set to « layer_skin_light.swf » and no embed fonts (all text field should have the parameter « include font » unchecked). You can remove the folders fonts, logs, cgi, conf, install, js, loaders, plugins, tools, trash and all files in the root folder except silex.swf
– in a new folder where you will put all the yahoo plugin, put a « Resources » folder with the « silex_server » folder inside it.
– use the file « fla/loader_projector.fla » of the dev kit to generate the loader, which I called « loader_yahoo_widget.swf ». This file contains the website configuration, your site name for example. Tip : leave this line uncommented (i do not know why exactly):
rootUrl = « ../silex_server/ »;
– create a .kon file which is the yahoo widget conf file, see the example I did. You just need to embed the loader_yahoo_widget.swf file. You also can define properties which the user will be able to modify and which will be available in Silex as accessors (in <<silex.config.YOUR PROPERTY FROM YAHOO CONFIG PANNEL>>)
illustration admin pannel
– install yahoo widget and use the « open widget » menu in order to load your widget.
After you have done a cool widget, let’s submit it to yahoo! here http://widgets.yahoo.com/submit/
